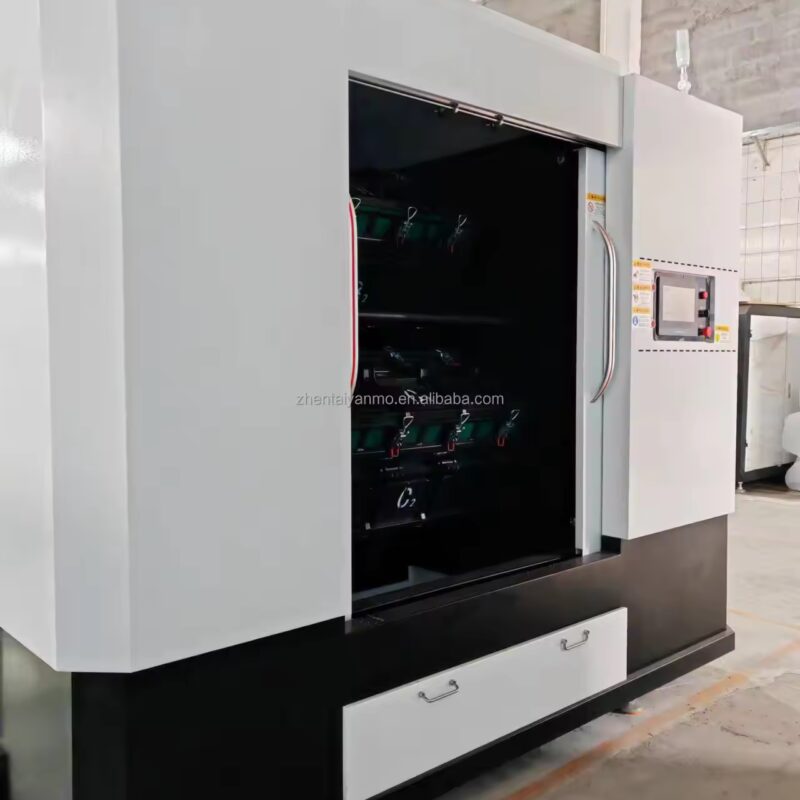

The DryCentrifugal Polishing Machine is a surface finishing equipment that utilizes high-speed centrifugal force to remove burrs, perform rough and fine polishing, and achieve mirror finishing on metal workpieces. It is widely used for processing zinc alloy, aluminum alloy, stainless steel, copper, and other materials. Unlike wet polishing systems, this machine operates entirely dry—without the need for water or chemical solutions—making it an environmentally friendly, efficient, and low-consumption solution for precision
polishing.
| Machine Parameters | |
|---|---|
| Main Motor Power | 4KW |
| Auxiliary Motor Power | 2.2KW |
| Power Consumption | 1–3 KWH |
| Spindle Speed | 60–120 r/min |
| Hopper Rotation Speed | 6–12 r/min |
| Machine Weight | 1600 Kg |
| Dimensions (L×W×H) | 2750 × 1650 × 1950 mm |
| Hopper Parameters | |
| Minimum Compartments | 40 |
| Compartment Size | 85 × 45 × 200 mm |
| Hopper Size | 990 × 180 × 200 mm |
| Number of Hoppers | 4 |
| Machine Parameters | |
|---|---|
| Main Motor Power | 11KW |
| Auxiliary Motor Power | 3.7KW |
| Power Consumption | 8–12 KWH |
| Spindle Speed | 60–130 r/min |
| Hopper Rotation Speed | 6–12 r/min |
| Machine Weight | 4300 Kg |
| Dimensions (L×W×H) | 3000 × 2280 × 2200 mm |
| Hopper Parameters | |
| Minimum Compartments | 40 |
| Compartment Size | 85 × 45 × 200 mm |
| Hopper Size | 990 × 180 × 200 mm |
| Number of Hoppers | 16 |
| Machine Parameters | |
|---|---|
| Main Motor Power | 15KW / 18.5KW |
| Auxiliary Motor Power | 3.7KW |
| Power Consumption | 8–12 KWH |
| Spindle Speed | 60–130 r/min |
| Hopper Rotation Speed | 6–12 r/min |
| Machine Weight | 5500 Kg |
| Dimensions (L×W×H) | 3790 × 2780 × 2700 mm |
| Hopper Parameters | |
| Minimum Compartments | 52 |
| Compartment Size | 103 × 49 × 250 mm |
| Hopper Size | 710 × 220 × 250 mm |
| Number of Hoppers | 32 |
